PT6643, PT6640, 24W 12V Input Positive to Negative Voltage Converter

PT6640 Series 24W 12V Input Positive to Negative Voltage Converter SLTS037A (Revised 6/30/2000) * Wide Input Voltage Range: +8V to +25V .

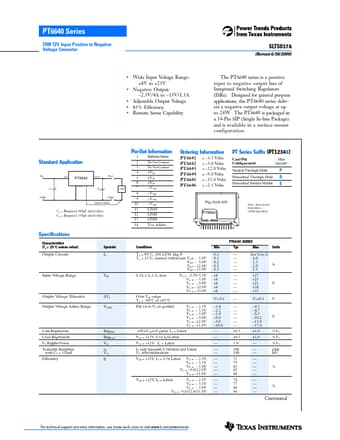

datasheet Preview Page 1 from Datasheet4u.com

PT6640-PowerTrends.pdf

PT6643 Datasheet Preview — This datasheet PDF includes multiple part numbers: PT6643, PT6640. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PT6643, PT6640

Manufacturer:

Power Trends

File Size:

114.59 KB

Description:

24W 12V Input Positive to Negative Voltage Converter

Note:

This datasheet PDF includes multiple part numbers: PT6643, PT6640.
Please refer to the document for exact specifications by model.

Applications

* the PT6640 series delivers a negative output voltage at up to 24W. The PT6640 is packaged in a 14-Pin SIP (Single In-line Package) and is available in a surface-mount configuration. Standard Application PT6640VIN 4,5,6 7,8,9,10 -VOUT + C1 11,12,13 1 C2 LOAD + COM COM REMOTE SENSE C1 = R
