PD64012 - 12-channel PoE Manager

The PD64012 by PowerDsine is a 12-channel PoE Manager. Below is the official datasheet preview.

Datasheet Details

Part number	PD64012
Manufacturer	PowerDsine
File Size	826.61 KB
Description	12-channel PoE Manager
Datasheet	PD64012_PowerDsine.pdf

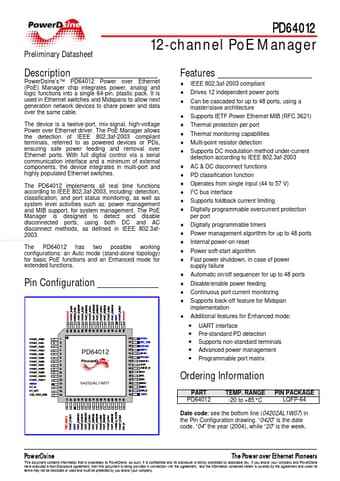

Additional preview pages of the PD64012 datasheet.

PD64012 Product details

Description

__________________ PowerDsine’s™ PD64012 Power over Ethernet (PoE) Manager chip integrates power, analog and logic functions into a single 64-pin, plastic pack.It is used in Ethernet switches and Midspans to allow next generation network devices to share power and data over the same cable.The device is a twelve-port, mix-signal, high-voltage Power over Ethernet driver.The PoE Manager allows the detection of IEEE 802.3af-2003 compliant terminals, referred to as powered devices or PDs, ensuring

Features

____________________.
IEEE 802.3af-2003 compliant Drives 12 independent power ports Can be cascaded for up to 48 ports, using a master/slave architecture Supports IETF Power Ethernet MIB (RFC 3621) Thermal protection per port Thermal monitoring capabilities Multi-point r.
