PFF7N60 Datasheet, Mosfet, PowerGate

PFF7N60 Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 1.2 Ω)@VGS=10V
  • Gate Charge (Typ. 35nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested PFF7N60 PFP7N60

PDF File Details

Part number:

PFF7N60

Manufacturer:

PowerGate

File Size:

556.09kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These N-channel enhancement mode field effect power transistor using Powergate semiconductor’s advanced planar stripe, DMOS technolog

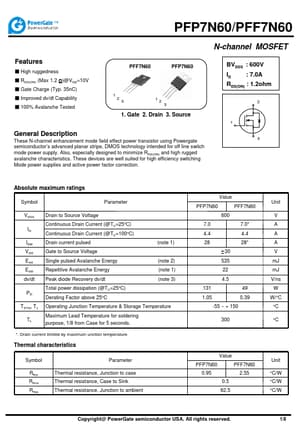

Datasheet Preview: PFF7N60 📥 Download PDF (556.09kb)
Page 2 of PFF7N60 Page 3 of PFF7N60
