PFF4N60

N-channel MOSFET

PFF4N60 Features

* High ruggedness

* RDS(ON) (Max 2.3 Ω)@VGS=10V

* Gate Charge (Typ. 27nC)

* Improved dv/dt Capability

* 100% Avalanche Tested 1 2 3 1 2 3 1 3 PFF4N60 PFP4N60 BVDSS : 600V ID : 4.5A RDS(ON) : 2.3ohm 2 1. Gate 2. Drain 3. Source General Description These N-channel enhancement

PFF4N60 General Description

These N-channel enhancement mode field effect power transistor is using Powergate semiconductor’s advanced planar stripe, DMOS technology intended for off line switch mode power supply. Also, especially designed to minimize RDS(ON) and high rugged avalanche characteristics. These devices are well su.

PFF4N60 Datasheet (768.53 KB)

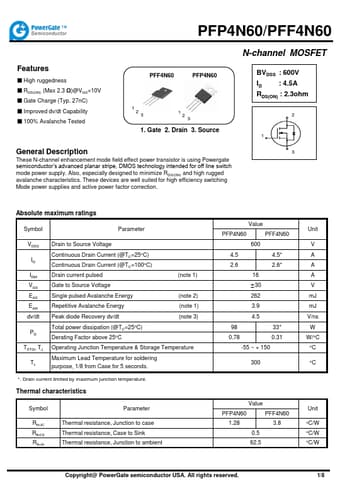

PFF4N60 Datasheet Preview — Preview of PFF4N60 PDF

Datasheet Details

Part number:

PFF4N60

Manufacturer:

PowerGate

File Size:

768.53 KB

Description:

N-channel mosfet.
