ME701202

Three-Phase Diode Bridge Modules (20 Amperes/1200-1600 Volts)

ME701202 Features

* M Isolated Mounting M Planar Chips M UL Recognized Applications: M Inverters Outline Drawing Dimension A B C D E F G H J K L M N Inches 3.150 2.677±0.012 1.220 1.181 1.142 0.866 0.728 0.512 0.492 R 0.472 0.118 0.079 Millimeters 80 68±0.3 31 30 29 22 18.5 13 R12.5 12 3 2 M DC Power Supplies M AC M

ME701202 General Description

Powerex Three-Phase Diode Bridge Modules are designed for use in three phase bridge applications. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors). ME701202, ME701602 T.

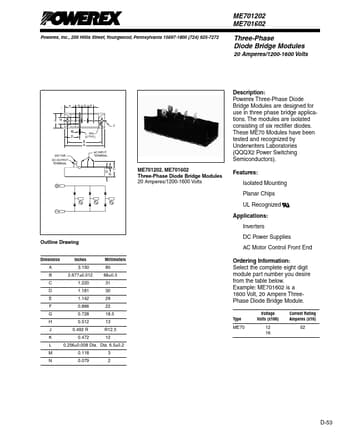

ME701202 Datasheet (75.31 KB)

Preview of ME701202 PDF

Datasheet Details

Part number:

ME701202

Manufacturer:

Powerex Powers

File Size:

75.31 KB

Description:

Three-phase diode bridge modules (20 amperes/1200-1600 volts).
