PDM6ET20V08E Datasheet - Prisemi

PDM6ET20V08E P- & N-Channel MOSFET

The enhancement mode MOS is extremely high density cell and low on-resistance. MOSFET Product Summary VDS(V) RDS(on)(Ω) N-Channel 20 0.2@ VGS=4.5V 0.25@ VGS=2.5V 0.31@ VGS=1.8V P-Channel -20 0.45@ VGS=-4.5V 0.62@ VGS=-2.5V 0.86@ VGS=-1.8V ID(A) 0.8 -0.8 PDM6ET20V08E PDM6ET20V08E D1 G2 S2 6 .

PDM6ET20V08E-Prisemi.pdf

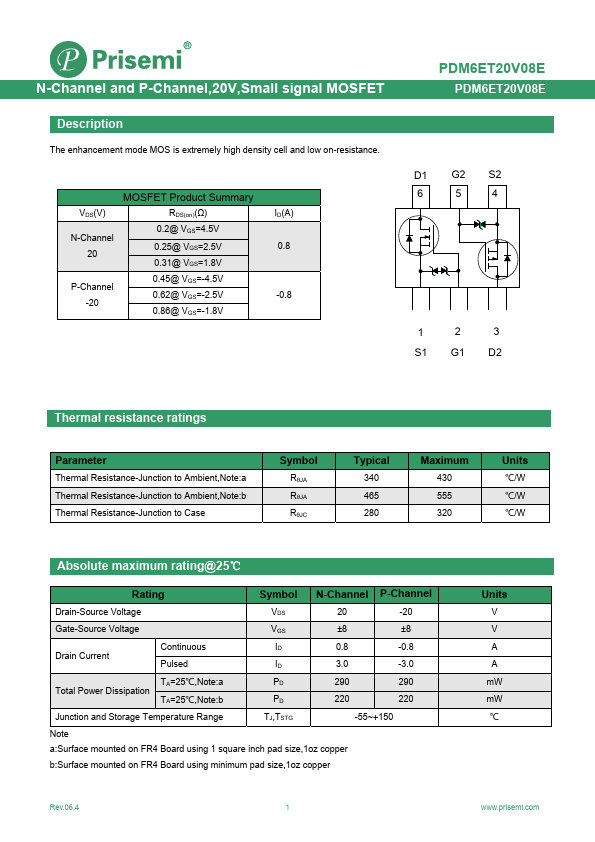

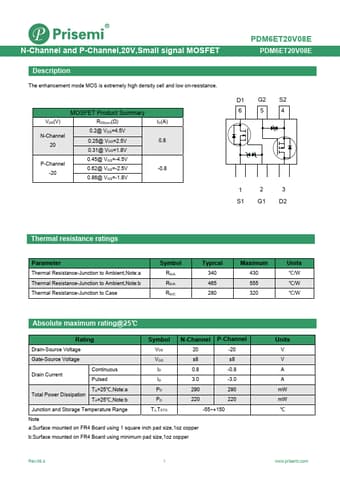

PDM6ET20V08E Datasheet Preview — Preview of PDM6ET20V08E PDF

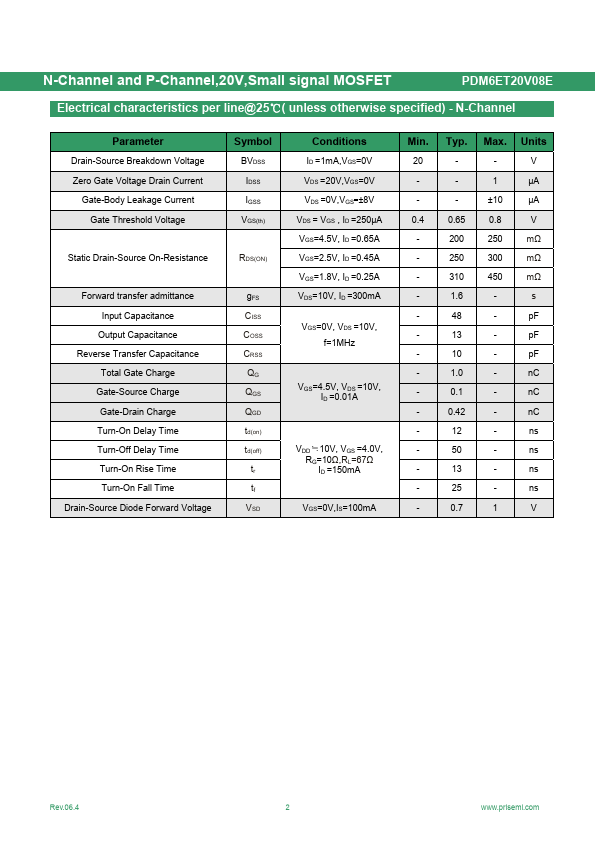

PDM6ET20V08E Datasheet Preview Page 2

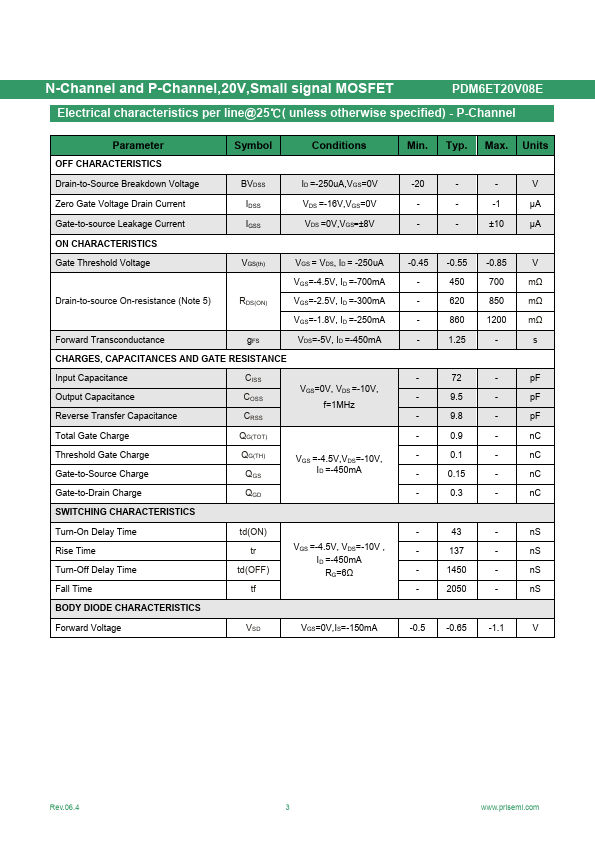

PDM6ET20V08E Datasheet Preview Page 3

Datasheet Details

Part number:

PDM6ET20V08E

Manufacturer:

Prisemi

File Size:

779.92 KB

Description:

P- & n-channel mosfet.
