Part number:
PDM6UT20V08E
Manufacturer:
Prisemi
File Size:
218.64 KB
Description:
N- & p-channel 20v mosfet.
Datasheet Details

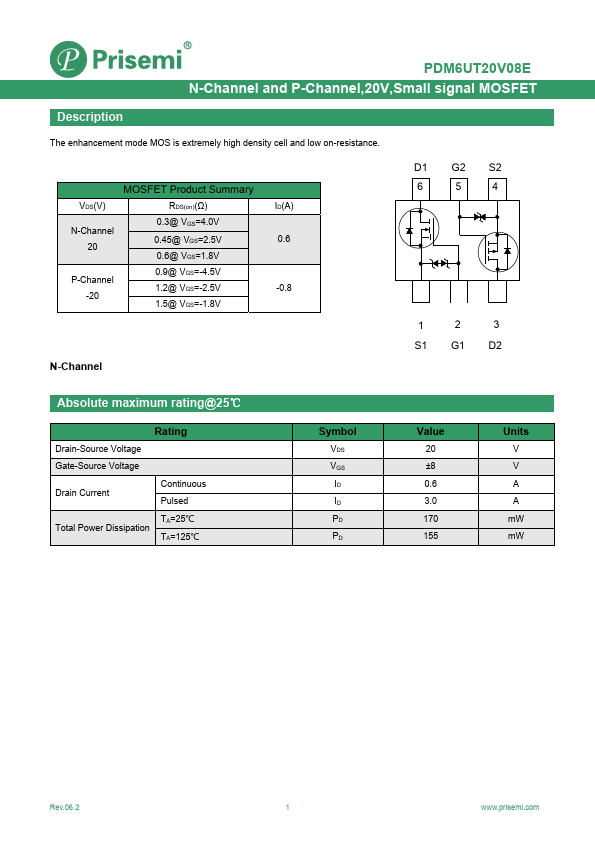

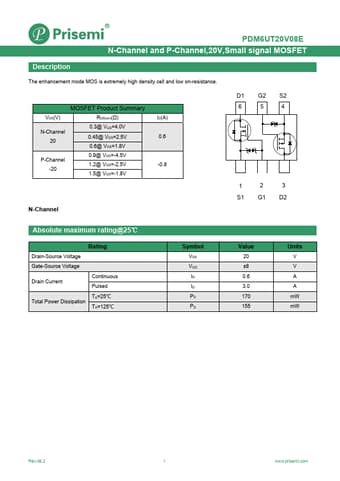

The enhancement mode MOS is extremely high density cell and low on-resistance.
MOSFET Product Summary VDS(V) RDS(on)(Ω) N-Channel 20 0.3@ VGS=4.0V 0.45@ VGS=2.5V 0.6@ VGS=1.8V P-Channel -20 0.9@ VGS=-4.5V 1.2@ VGS=-2.5V 1.5@ VGS=-1.8V ID(A) 0.6 -0.8 N-Channel D1 G2 S2 6 5 4 1 2 3 S
Datasheet Details
PDM6UT20V08E
Prisemi
218.64 KB
N- & p-channel 20v mosfet.
