PAM28DOAC5.0A - 400 Watt TVS Component

Datasheet Summary

Features

  • AEC-Q101 Qualified.
  • UL Registered.
  • ISO 7637-2 Pulse 1, 2a, 2b, 3a, 3b Compliant.
  • IEC 61000-4-2 (ESD): Level 4 - Air 15kV, Contact 8kV.
  • IEC 61000-4-4 (EFT): 40A 5/50ns.
  • IEC 61000-4-5 (Surge): 8/20µs Waveform.
  • Glass Passivated Chip.
  • 400 Watts Peak Pulse Power per Line (tp = 10/1000µs).
  • Low Leakage Current.
  • Unidirectional & Bidirectional Configurations.
  • Excellent Clamping Capability.
  • Very Fa.

📥 Download Datasheet

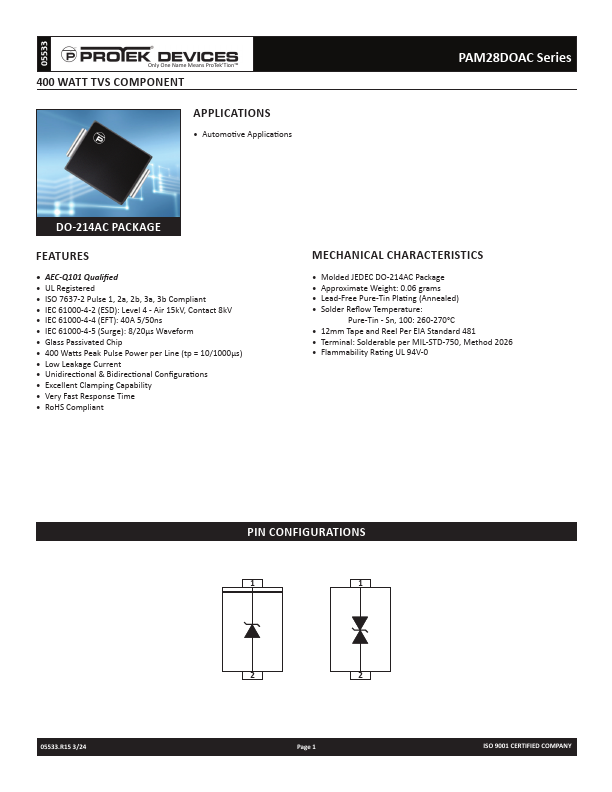

Datasheet preview – PAM28DOAC5.0A

Datasheet Details

Part number PAM28DOAC5.0A
Manufacturer ProTek Devices
File Size 515.21 KB
Description 400 Watt TVS Component
Datasheet download datasheet PAM28DOAC5.0A Datasheet

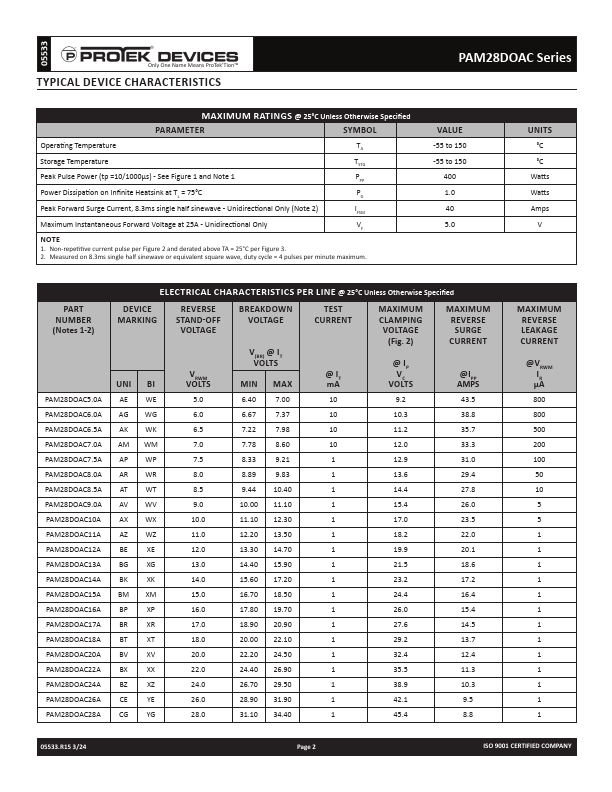

Additional preview pages of the PAM28DOAC5.0A datasheet.

📁 Similar Datasheet

  • PAM2800 - HIGH POWER WHITE LED DRIVER (Diodes)
  • PAM2800 - High Power White LED Driver (Power Analog Micoelectronics)
  • PAM2801 - 1W High Power White LED Driver (Power Analog Micoelectronics)
  • PAM2803 - 3W High Power White LED Driver (Power Analog Micoelectronics)
  • PAM2803 - 3W HIGH POWER WHITE LED DRIVER (Diodes)
  • PAM2804 - HIGH EFFICIENCY LED DRIVER (Diodes)
  • PAM2805 - 3-MODES / 3W WLED DRIVER (Diodes)
  • PAM2808 - 5W HIGH POWER HBLED DRIVER (Diodes)
  • PAM2810 - 4-Channel Programmable LED Current Sink (Power Analog Micoelectronics)
  • PAM2841 - 40V PRECISION WLED DRIVER (Diodes)
Other Datasheets by ProTek Devices

Full PDF Text Transcription

Click to expand full text
05533 Only One Name Means ProTek’Tion™ 400 Watt TVS Component applications • Automotive Applications PAM28DOAC Series DO-214ac package Features • AEC-Q101 Qualified • UL Registered • ISO 7637-2 Pulse 1, 2a, 2b, 3a, 3b Compliant • IEC 61000-4-2 (ESD): Level 4 - Air 15kV, Contact 8kV • IEC 61000-4-4 (EFT): 40A 5/50ns • IEC 61000-4-5 (Surge): 8/20µs Waveform • Glass Passivated Chip • 400 Watts Peak Pulse Power per Line (tp = 10/1000µs) • Low Leakage Current • Unidirectional & Bidirectional Configurations • Excellent Clamping Capability • Very Fast Response Time • RoHS Compliant Mechanical characteristics • Molded JEDEC DO-214AC Package • Approximate Weight: 0.
