PAM01SC7905C, ULTRA LOW CAPACITANCE TVS ARRAY

05345 Only One Name Means ProTek’Tion™ PAM01SC7905C ultra LOW CAPACITANCE TVS ARRAY .
The PAM01SC7905C is an ultra low capacitance transient voltage suppressor array, designed to protect automotive applications.

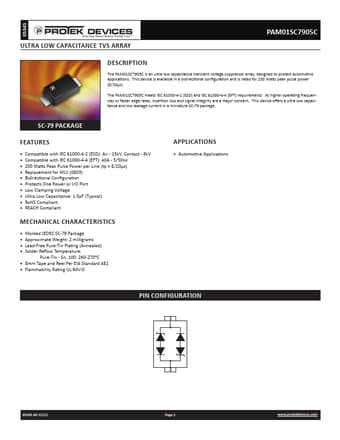

datasheet Preview Page 1 from Datasheet4u.com

PAM01SC7905C_ProtekDevices.pdf

PAM01SC7905C Datasheet Preview — Preview of PAM01SC7905C PDF

Datasheet Details

Part number:

PAM01SC7905C

Manufacturer:

Protek Devices

File Size:

512.92 KB

Description:

ULTRA LOW CAPACITANCE TVS ARRAY

Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* 200 Watts Peak Pulse Power per Line (tp = 8/20µs)
* Replacement for MLV (0803)
* Bidirectional Configuration
* Protects One Pow

Applications

* This device is available in a bidirectional configuration and is rated for 200 Watts peak pulse power (8/20µs). The PAM01SC7905C meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major conc
