LSIPD-A75, LSIPD-A75-Q, Analog InGaAs PIN photodiode

75um 2.5GHz Analog InGaAs PIN photodiode V4.1HIPD-003 20-10-01 Model: LSIPD-A75 .
Bottom View Note: For more information on dimension, please contact us.

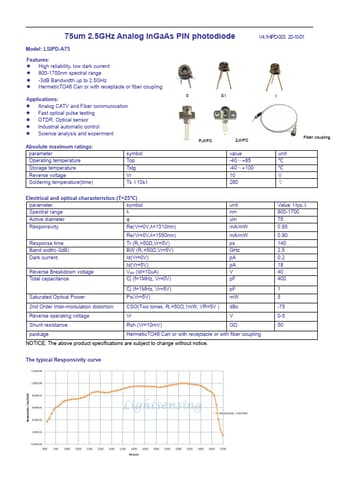

datasheet Preview Page 1 from Datasheet4u.com

LSIPD-A75-Q-BAIHE.pdf

LSIPD-A75 Datasheet Preview — This datasheet PDF includes multiple part numbers: LSIPD-A75, LSIPD-A75-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LSIPD-A75, LSIPD-A75-Q

Manufacturer:

Q-BAIHE

File Size:

259.55 KB

Description:

Analog InGaAs PIN photodiode

Note:

This datasheet PDF includes multiple part numbers: LSIPD-A75, LSIPD-A75-Q.
Please refer to the document for exact specifications by model.

Features

* High reliability, low dark current
* 800-1700nm spectral range
* -3dB Bandwidth up to 2.5GHz

Applications

* Analog CATV and Fiber communication
* Fast optical pulse testing
* OTDR, Optical sensor
* Industrial automatic control
* Science analysis and experiment Absolute maximum ratings: parameter Operating temperature Storage temperature Reverse voltage Soldering temperature(time)
