LSIPD-A40, LSIPD-A40-Q, Analog InGaAs PIN photodiode

40um 6GHz Analog InGaAs PIN photodiode V4.1HIPD-001 20-10-01 Model: LSIPD-A40 .
Bottom View Order information LSIPD-A40-X-X-X-X X=B Type B PIN description X=other X=S1 X=S1A X=1 X=1A X=SMFA/P X=SMSA/P X=5MMFA/P X=6MMFA/P X=2JKF.

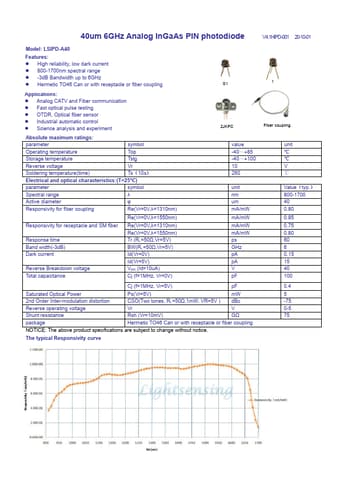

datasheet Preview Page 1 from Datasheet4u.com

LSIPD-A40-Q-BAIHE.pdf

LSIPD-A40 Datasheet Preview — This datasheet PDF includes multiple part numbers: LSIPD-A40, LSIPD-A40-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LSIPD-A40, LSIPD-A40-Q

Manufacturer:

Q-BAIHE

File Size:

234.99 KB

Description:

Analog InGaAs PIN photodiode

Note:

This datasheet PDF includes multiple part numbers: LSIPD-A40, LSIPD-A40-Q.
Please refer to the document for exact specifications by model.

Features

* High reliability, low dark current
* 800-1700nm spectral range
* -3dB Bandwidth up to 6GHz

Applications

* Analog CATV and Fiber communication
* Fast optical pulse testing
* OTDR, Optical fiber sensor
* Industrial automatic control
* Science analysis and experiment 2JKFC Fiber coupling Absolute maximum ratings: parameter symbol Operating temperature Top Storage temperature
