QL65E7S-C Datasheet (159.87 KB)
QL65E7S-C
QSI
159.87 KB
Laser diode.

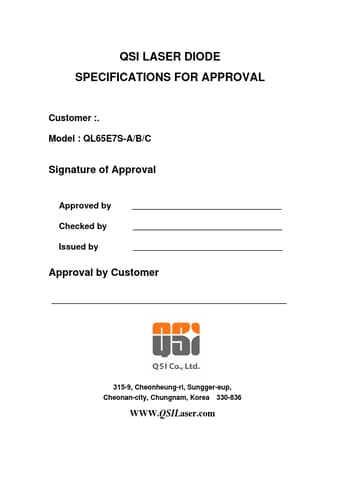

QSI LASER DIODE SPECIFICATIONS FOR APPROVAL
Customer :. Model : QL65E7S-A/B/C
Signature of Approval
Approved by Checked by Issued by
Approval by Custo.
* - Visible Light Output : λp = 650 nm - Optical Power Output : 7mW CW - Package Type : TO-18 (5.6mmφ) - Built-in Photo Diode for Monitoring Laser Diode
* ELECTRICAL CONNECTION Bottom View Pin Configuration A LD cathode, PD anode (Fig. 1) B LD , PD anode (Fig. 2) C LD anode, PD cathode
