Description

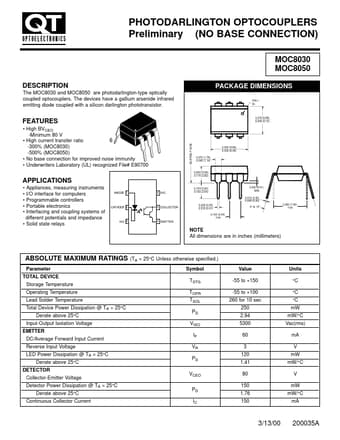

PHOTODARLINGTON OPTOCOUPLERS Preliminary (NO BASE CONNECTION) MOC8030 MOC8050 .
The MOC8030 and MOC8050 are photodarlington-type optically coupled optocouplers.
Features
* High BVCEO -Minimum 80 V 6
* High current transfer ratio -300% (MOC8030) -500% (MOC8050)
* No base connection for improved noise immunity
* Underwriters Laboratory (UL) recognized File# E90700
0.270 (6.86) 0.240 (6.10)
SEATING PLANE
0.350 (8.89) 0.330 (8.38) 0.07
Applications
* Appliances, measuring instruments I/O interface for computers Programmable controllers Portable electronics Interfacing and coupling systems of different potentials and impedance
* Solid state relays
ANODE 1 6 N/C
0.154 (3.90) 0.100 (2.54) 0.
