MOC8050M, MOC8021M - 6-Pin DIP Photodarlington Optocoupler

MOC8050M Description

DATA SHEET www.onsemi.com 6-Pin DIP Photodarlington Optocoupler (No Base Connection) MOC8021M, MOC8050M The MOC8021M and MOC8050M are photodarlingto.

MOC8050M Features

* High BVCEO:
* Minimum 50 V (MOC8021M)
* Minimum 80 V (MOC8050M)
* High Current Transfer Ratio:
* Minimum 1000% (MOC8021M)
* Minimum 500% (MOC8050M)
* No Base Connection for Improved Noise Immunity
* Safety and Regulatory Approvals:

MOC8050M Applications

* Appliances, Measuring Instruments
* I/O Interface for Computers
* Programmable Controllers
* Portable Electronics
* Interfacing and Coupling Systems of Different Potentials and Impedance
* Solid State Relays SCHEMATIC 1 ANODE N/C CATHODE COLLECT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MOC8050M, MOC8021M. Please refer to the document for exact specifications by model.

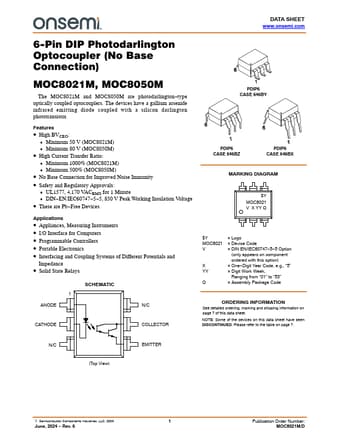

datasheet Preview Page 2 datasheet Preview Page 3
