MOC8050 - PHOTODARLINGTON OPTOCOUPLER

Product Overview

Siemens Semiconductor

Part number	MOC8050
Manufacturer	Siemens Semiconductor
File Size	46.39 KB
Description	PHOTODARLINGTON OPTOCOUPLER
Datasheet	MOC8050 Datasheet

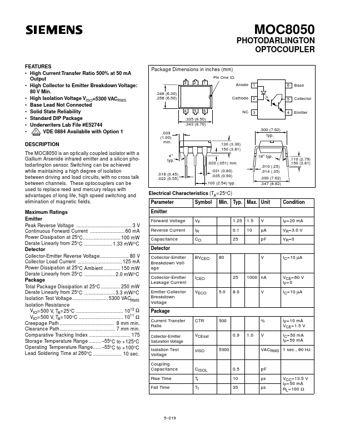

Additional preview pages of the MOC8050 datasheet.

The MOC8050 is an optically coupled isolator with a Gallium Arsenide infrared emitter and a silicon photodarlington sensor.

High Current Transfer Ratio 500% at 50 mA Output.
High Collector to Emitter Breakdown Voltage: 80 V Min.
High Isolation Voltage VISO=5300 VACRMS.
Base Lead Not Connected.
Solid State Reliability.
Standard DIP Package.
Underwriters Lab File #E52744 V.
VDE 0884 Availablle with Option 1 D E Package Dimensions in inches (mm) Pin One ID. 3 .248 (6.30) .256 (6.50) 4 5 6 2 1 Anode Cathode NC 1 2 3 6 5 4 Base Collector Emitter .
