CMD305 Datasheet - Qorvo

CMD305 - Driver Amplifier

6-16 GHz Driver Amplifier, 100 Piece Gel Pack 2 Vdd RFIN 1 RFOUT 3 Electrical Performance (Vdd = 5.0 V, TA = 25 oC, F = 11 GHz) Parameter )Frequency Range )Gain )Input Return Loss )Output Return Loss Output P1dB )Output Psat Output IP3 Supply Current Min Typ Max 6 - 16 18.5 20 9 20 21

CMD305 ® 6-16 GHz Driver Amplifier Product Overview The CMD305 is a broadband MMIC driver amplifier ideally suited for EW and communications systems where small size and low power consumption are needed.

At 11 GHz the device delivers greater than 18 dB of gain and +21 dBm saturated output power at 24 % PAE from a single 5 V supply.

The CMD305 is a 50 ohm matched design eliminating the need for external DC blocks and RF port matching.

The CMD305 offers full passivation for increased reliabilit

CMD305-Qorvo.pdf

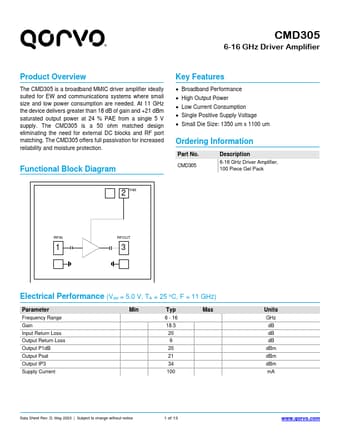

Preview of CMD305 PDF
CMD305 Datasheet Preview Page 2 CMD305 Datasheet Preview Page 3

Datasheet Details

Part number:

CMD305

Manufacturer:

Qorvo

File Size:

309.81 KB

Description:

Driver amplifier.
