CMD318P3 - Low Noise Amplifier

CMD318P3 Description

CMD318P3 ® 5-9 GHz Low Noise Amplifier Product Overview The CMD318P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic su.
5-9 GHz Low Noise Amplifier, 100 Piece 7” Reel 5-9 GHz Low Noise Amplifier, 1000 Piece 7” Reel Evaluation Board Electrical Performance (Vdd = 3.

CMD318P3 Features

* Ultra Low Noise Figure
* Low Current Consumption
* High Gain Broadband Performance
* Single Positive Supply Voltage

CMD318P3 Applications

* where small size and low power consumption are needed. The broadband device delivers 22 dB of gain with a corresponding output 1 dB compression point of +14 dBm and a noise figure of 1.25 dB at 8 GHz. The CMD318P3 is a 50 ohm matched design eliminating the need for external DC blocks and RF port mat

📥 Download Datasheet

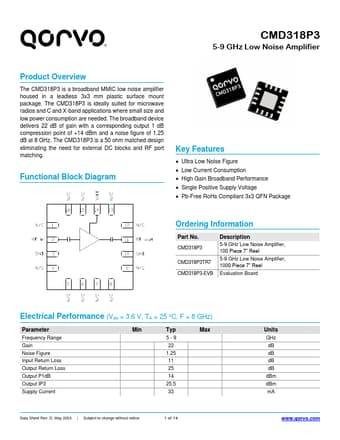

Preview of CMD318P3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMD318P3
Manufacturer
Qorvo
File Size
413.18 KB
Datasheet
CMD318P3-Qorvo.pdf
Description
Low Noise Amplifier
