QPA0812 1 Watt X-Band Power Amplifier

1 Watt X-Band Power Amplifier 500 pcs. on 7 inch reel QPA0812 Evaluation Board Data Sheet Rev. D, September 2023 1 of 24 www.qorvo.com QPA0812 ® 1 Watt X-Band Power Amplifier Absolute Maximum Ratings Parameter Rating Drain Voltage (VD) 6.5 V Gate Voltage Range (VG) *5 to 0 V Dr.

QPA0812 ® 1 Watt X-Band Power Amplifier Product Overview Qorvo's QPA0812 is a packaged, high performance power amplifier fabricated on Qorvo's production QPHT15 (0.15um) pHEMT process. Covering 8.5 - 10.5 GHz, the QPA0812 provides > 1 W of saturated output power and 24 dB of large-signal gain while achieving 48% power-added efficiency. Packaged in a small 4 x 3 mm plastic overmold QFN, tight lattice spacing requirements for phased array radar applications is easily supported. RF input and out.

QPA0812 Features

* Frequency Range: 8.5

* 10.5 GHz

* Output Power (PIN = 6 dBm): 30.8 dBm

* PAE (PIN = 6 dBm): 48.2 %

* Small Signal Gain: 34.4 dB

* Recommended Bias: VD = 6 V, IDQ = 156 mA

* Package Size: 4.0 mm x 3.0 mm x 0.85 mm Functional Block Diagram RF

QPA0812 Datasheet (961.57 KB)

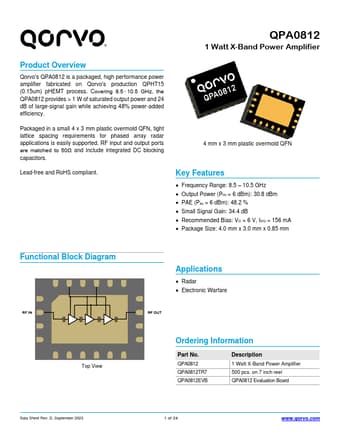

QPA0812 Datasheet Preview — Preview of QPA0812 PDF

Datasheet Details

Part number:

QPA0812

Manufacturer:

Qorvo

File Size:

961.57 KB

Description:

1 watt x-band power amplifier.
