QPM2100 Datasheet, Module, Qorvo

QPM2100 Features

  • Module
  • Frequency Range: 2.5 
      – 4.0 GHz
  • RX Noise Figure: 1.2 dB
  • RX Small Signal Gain: 30 dB
  • RX Power at 1dB compression: 14.5 dBm

PDF File Details

Part number:

QPM2100

Manufacturer:

Qorvo

File Size:

1.23MB

Download:

📄 Datasheet

Description:

Multi-chip t/r module. The QPM2100 is a GaAs multi chip module (MCM) designed for S-Band radar applications within the 2.5-4.0 GHz range. The device consist

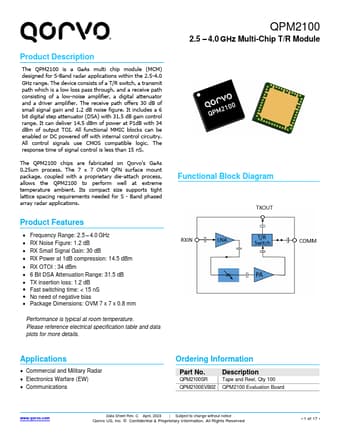

Datasheet Preview: QPM2100 📥 Download PDF (1.23MB)
Page 2 of QPM2100 Page 3 of QPM2100

QPM2100 Application

  • Applications within the 2.5-4.0 GHz range. The device consists of a T/R switch, a transmit path which is a low loss pass through, and a receive path
