QPM2239 13 - 15.5GHz 80W GaN Power Amplifier Module

13-15.5GHz 80W GaN Power Amplifier Module Samples (2 pcs. pack) Evaluation Board for QPM2239 Data Sheet Rev. D, March 2024 1 of 18 www.qorvo.com QPM2239 13 * 15.5 GHz 80W GaN Power Amplifier Module Absolute Maximum Ratings Parameter Value / Range Drain Voltage (VD) +29.5 V Gate Vol.

QPM2239 13 15.5 GHz 80W GaN Power Amplifier Module Product Overview Qorvo’s QPM2239 is a packaged, high-power Ku-band amplifier module, fabricated on Qorvo’s production 0.15 um GaN on SiC process (QGaN15). Covering 13 15.5 GHz, the QPM2239 provides 80 W of saturated output power and 29 dB of small-signal gain while achieving > 25% poweradded efficiency. The QPM2239 is packaged in a 10-lead 19.05 x 19.05 mm bolt-down package with a Cu base for superior thermal management. It .

QPM2239 Features

* Frequency Range: 13

* 15.5 GHz

* PSAT (PIN = 25 dBm): 49 dBm

* PAE (PIN = 25 dBm): > 25 %

* IM3 ( POUT/Tone = 38 dBm): -22 dBc

* Small Signal Gain: 29 dB

* Bias: CW, VD = +28 V, IDQ = 800 mA, VG = -2.5 V typ.

* Package Dimensions: 19.

QPM2239 Datasheet (1.07 MB)

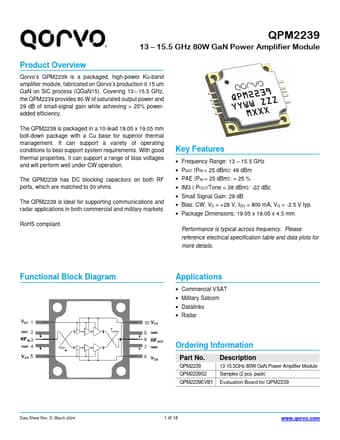

QPM2239 Datasheet Preview — Preview of QPM2239 PDF

Datasheet Details

Part number:

QPM2239

Manufacturer:

qorvo

File Size:

1.07 MB

Description:

13 - 15.5ghz 80w gan power amplifier module.
