QPM1021 100W GaN Power Amplifier

10 *12 GHz 100 Watt GaN Power Amplifier (20 pcs.) QPM1021 Samples (2 pcs.) QPM1021 Evaluation Board Data Sheet Rev. G, August 2023 | Subject to change without notice 1 of 16 www.qorvo.com QPM1021 ® 10 * 12 GHz 100 W GaN Power Amplifier Absolute Maximum Ratings Recommended Oper.

QPM1021 ® 10 12 GHz 100 W GaN Power Amplifier Product Overview Qorvo’s QPM1021 is a packaged, high power amplifier fabricated on Qorvo’s production 0.15 um GaN on SiC process. The QPM1021 operates from 10 12 GHz and provides 100 W (50 dBm) of saturated output power with 20 dB of large signal gain and greater than 32 % power added efficiency. The QPM1021 is packaged in a 10-lead 19.05 x 19.05 mm bolt-down package, with a pure copper base for superior thermal managem.

QPM1021 Features

* Frequency Range: 10

* 12 GHz

* PSAT: > 50 dBm (PIN = 28 dBm)

* PAE: > 32% (PIN = 28 dBm)

* Large Signal Gain: > 20 dB (PIN = 28 dBm)

* Small Signal Gain: > 26 dB

* Bias: VD = 28 V, IDQ = 2.0 A

* Package Dimensions: 19.05 x 19.05 x 4.5

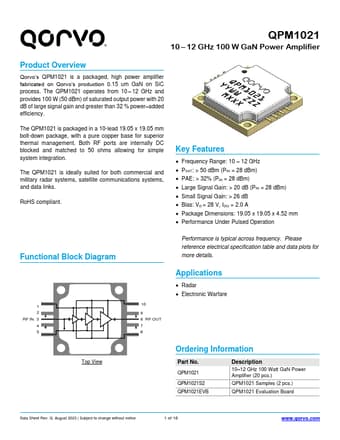

QPM1021 Datasheet (649.14 KB)
