QPM2101

Multi-Chip T/R Module

QPM2101 Features

* Frequency Range: 2.5 

*  4.0 GHz

* RX Noise Figure: 1.0 dB

* RX Small Signal Gain: 30 dB

* RX Power at 1dB compression: 13.8 dBm

* RX OTOI : 32 dBm

* 6 Bit DSA Attenuation Range: 31.5 dB

* TX insertion loss: 1.2 dB

* Fast switch

QPM2101 General Description

The QPM2101 is a GaAs multi chip module (MCM) designed for S-Band radar applications within the 2.5-4.0 GHz range. The device consists of a T/R switch, a transmit path which is a low loss pass through, and a receive path consisting of a low-noise amplifier, a digital attenuator and a driver amplifie.

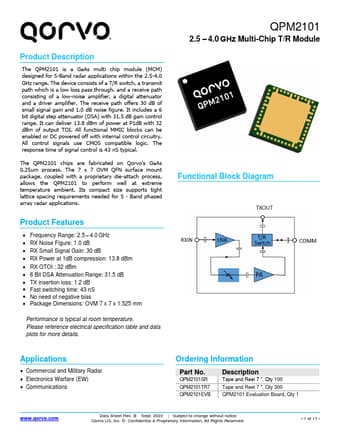

QPM2101 Datasheet (1.02 MB)

Preview of QPM2101 PDF

Datasheet Details

Part number:

QPM2101

Manufacturer:

Qorvo

File Size:

1.02 MB

Description:

Multi-chip t/r module.
