QPM0106 35W GaN Power Amplifier

1 -6 GHz GaN Power Amplifier Evaluation Board for QPM0106 Data Sheet Rev. C, November 2023 | Subject to change without notice 1 of 25 www.qorvo.com QPM0106 ® 1.0 * 6.0 GHz 35 W GaN Power Amplifier Absolute Maximum Ratings Parameter Value / Range Drain Voltage (VD) 40 V Gate Volta.

QPM0106 ® 1.0 6.0 GHz 35 W GaN Power Amplifier Product Overview Qorvo’s QPM0106 is a packaged, high power amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process. The QPM0106 operates from 1.0 6.0 GHz and provides 45.4 dBm (35 W) of saturated output power with 22.4 dB of large signal gain and 41 % power added efficiency. The QPM0106 is packaged in a 10-lead 15.24 x 15.24 mm bolt-down package, with a pure copper base for superior thermal management. Bo.

QPM0106 Features

* Frequency Range: 1

* 6 GHz

* PSAT : 45.4 dBm (PIN = 23 dBm)

* PAE: 41% (PIN = 23 dBm)

* Power Gain: 22.4 dB (PIN = 23 dBm)

* Small Signal Gain: 30.2 dB

* Bias: VD = 24 V, IDQ = 2044 mA

* Package Dimensions: 15.24 x 15.24 x 3.51 mm Per

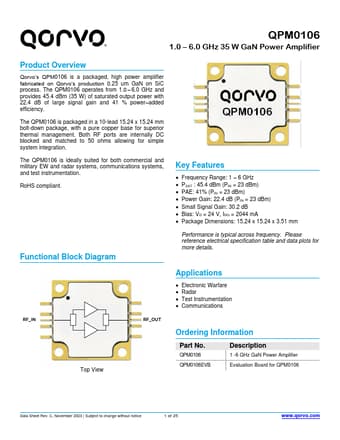

QPM0106 Datasheet (655.71 KB)

QPM0106 Datasheet Preview — Preview of QPM0106 PDF

Datasheet Details

Part number:

QPM0106

Manufacturer:

qorvo

File Size:

655.71 KB

Description:

35w gan power amplifier.
