RFCM3328 GaAs/GaN Power Doubler Module

Sample bag with 5 pieces 7” Reel with 100 pieces 13” Reel with 1000 pieces Fully Assembled Evaluation Board Data Sheet Rev.C, October 20, 2021 | Subject to change without notice 1 of 8 www.qorvo.com RFCM3328 ® 45-1218 MHz GaAs/GaN Power Doubler Module Absolute Maximum Ratings Parameter RF In.

RFCM3328 ® 45-1218 MHz GaAs/GaN Power Doubler Module POWER DOUBLER MODULE Product Overview The RFCM3328 is a Power Doubler amplifier SMD Module. The part employs GaAs pHEMT die and GaN HEMT die, has high output capability, and is operated from 45 MHz to 1218 MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. DC current of the device can be externally adjusted for optimum distortion performance versus power consumption over a wide.

RFCM3328 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under all Terminations

* Extremely High Output Capability

* 25 dB Min. Gain at 1218 MHz

RFCM3328 Datasheet (491.61 KB)

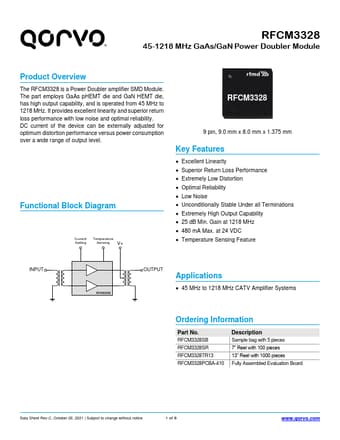

RFCM3328 Datasheet Preview — Preview of RFCM3328 PDF

Datasheet Details

Part number:

RFCM3328

Manufacturer:

Qorvo

File Size:

491.61 KB

Description:

Gaas/gan power doubler module.
