RFCM3326 POWER DOUBLER MODULE

RFCM3326 45-1218MHZ GAAS/GAN POWER DOUBLER MODULE The RFCM3326 is a Power Doubler amplifier SMD Module. The part employs GaAs pHEMT die and GaN HEMT die, has high output capability, and is operated from 45MHz to 1218MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. DC current of the device can be externally adjusted for optimum distortion performance versus power consumption over a wide range of output level. Current Temperature .

RFCM3326 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under all Terminations

* Extremely High Output Capability

* 24.5dB Min. Gain at 1218MHz

* 450mA Max. at 24VDC

* Tempe

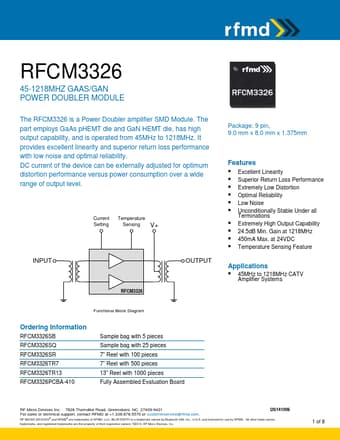

RFCM3326-RFMicroDevices.pdf

RFCM3326 Datasheet Preview — Preview of RFCM3326 PDF

Datasheet Details

Part number:

RFCM3326

Manufacturer:

RF Micro Devices

File Size:

241.16 KB

Description:

Power doubler module.
