RFCM2680 Datasheet - RF Micro Devices

RFCM2680 - POWER DOUBLER MODULE

The RFCM2680 is a Power Doubler amplifier SMD Module.

The part employs GaAs pHEMT die and GaN HEMT die, has high output capability, and is operated from 45MHz to 1003MHz.

It provides excellent linearity and superior return loss performance with low noise and optimal reliability.

DC current of the de

RFCM2680 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under all Terminations

* Extremely High Output Capability

* 22.5dB Min. Gain at 1003MHz

* 450mA Max. at 24VDC Application

RFCM2680-RFMicroDevices.pdf

Preview of RFCM2680 PDF

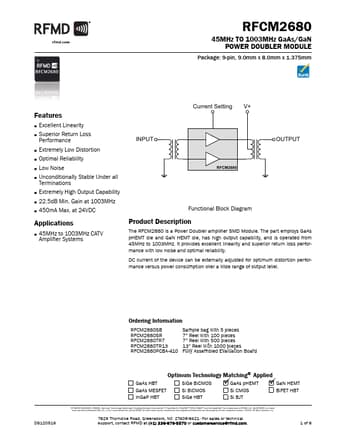

RFCM2680 Datasheet Preview Page 2 RFCM2680 Datasheet Preview Page 3
