RFCM4363 PUSH PULL MODULE

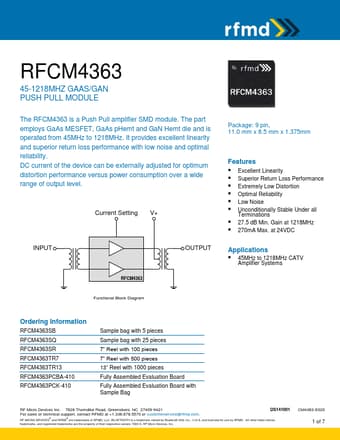

RFCM4363 45-1218MHZ GAAS/GAN PUSH PULL MODULE The RFCM4363 is a Push Pull amplifier SMD module. The part employs GaAs MESFET, GaAs pHemt and GaN Hemt die and is operated from 45MHz to 1218MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. DC current of the device can be externally adjusted for optimum distortion performance versus power consumption over a wide range of output level. Current Setting V+ INPUT RFCM4363 OUTPUT Packa.

RFCM4363 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under all Terminations

* 27.5 dB Min. Gain at 1218MHz

* 270mA Max. at 24VDC Applications

* 45MHz to 1218MHz CATV Amplifie

RFCM4363-RFMicroDevices.pdf

RFCM4363 Datasheet Preview — Preview of RFCM4363 PDF

Datasheet Details

Part number:

RFCM4363

Manufacturer:

RF Micro Devices

File Size:

460.54 KB

Description:

Push pull module.
