RFSA2023 Datasheet, Attenuator, Qorvo

RFSA2023 Features

  • Attenuator
  • Broadband 50MHz to 6000 MHz
  • 30 dB Attenuation Range
  • +50 dBm Input IP3
  • +80 dBm Input IP2
  • >+30 dBm High 1 dB Compression
  • 1mA Lo

PDF File Details

Part number:

RFSA2023

Manufacturer:

Qorvo

File Size:

3.90MB

Download:

📄 Datasheet

Description:

Voltage controlled attenuator. 2,500 pieces on a 7” reel (standard) 50   – 6000 MHz Evaluation Board with 5-piece sample bag 1 of 16 www.qorvo.com

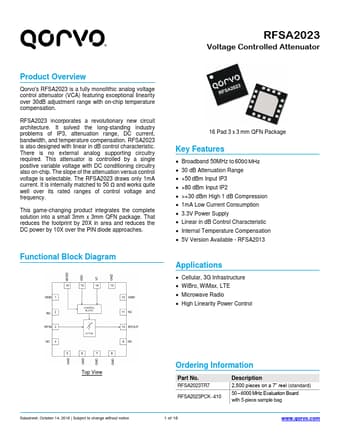

Datasheet Preview: RFSA2023 📥 Download PDF (3.90MB)
Page 2 of RFSA2023 Page 3 of RFSA2023

RFSA2023 Application

  • Applications
  • Cellular, 3G Infrastructure
  • WiBro, WiMax, LTE
  • Microwave Radio
  • High Linearity Power Control Top
