RFSA2514 - Digital Step Attenuator

RFSA2514 Description

RFSA2514 Serial Controlled Digital Step Attenuator 50MHz to 4000MHz, 5Bit, 0.5dB LSB RFSA2514 SERIAL CONTROLLED DIGITAL STEP ATTENUATOR 50MHz TO 40.
RFMD's RFSA2514 is a 5-bit digital step attenuator (DSA) that features high linearity over the entire 15.

RFSA2514 Features

* Frequency Range 50MHz to 4000MHz
* 5-Bits, 15.5dB Range, 0.5dB Step
* High Linearity, IIP3 >48dBm
* 3V and 5V Logic Compatible
* Serial-to-Parallel Controller
* Serial Programming Interface
* Power-up Programming Modes
* On-chip ESD Protection Class 1C HBM
* Sin

RFSA2514 Applications

* Transceiver RF and IF Applications
* Cellular, PCS, GSM, UMTS, LTE, WiMax/WiFi
* Wireless Data, Satellite Terminals
* Test Equipment GND 1 VDD 2 GND 3 RF1 4 GND GND 5 6 SPI 5-Bit DSA 18 GND 17 GND 16 GND 15 RF2 14 GND 13 GND 7 8 9 10 11 12 GND GND GND GND GND GND Functio

📥 Download Datasheet

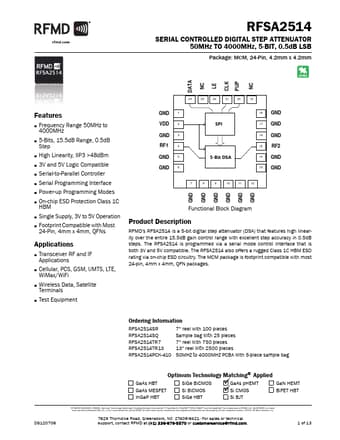

Preview of RFSA2514 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFSA2514
Manufacturer
RF Micro Devices
File Size
1.00 MB
Datasheet
RFSA2514-RFMicroDevices.pdf
Description
Digital Step Attenuator
