RFSA2614 - PARALLEL CONTROLLED DIGITAL STEP ATTENUATOR

RFSA2614 Description

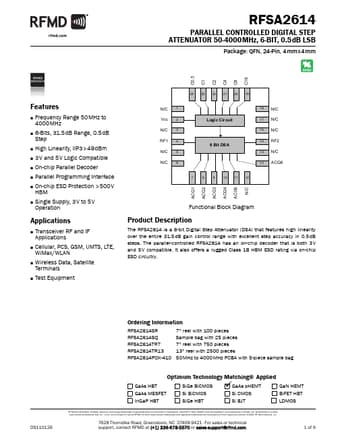

RFSA2614Parallel Controlled Digital Step Attenuator 504000 MHz, 6Bit, 0.5 dB LSB RFSA2614 PARALLEL CONTROLLED DIGITAL STEP ATTENUATOR 50-4000MHz, 6-B.
The RFSA2614 is a 6-bit Digital Step Attenuator (DSA) that features high linearity over the entire 31.

RFSA2614 Features

* N/C Vcc N/C RF1 N/C N/C 1 2 3 4 5 6 C16 19 18 N/C N/C N/C RF2 N/C ACG6 Frequency Range 50MHz to 4000MHz 6-Bits, 31.5dB Range, 0.5dB Step High Linearity, IIP3>49dBm 3V and 5V Logic Compatible On-chip Parallel Decoder Parallel Programming Interface On-chip ESD Protection >500V HBM Single S
