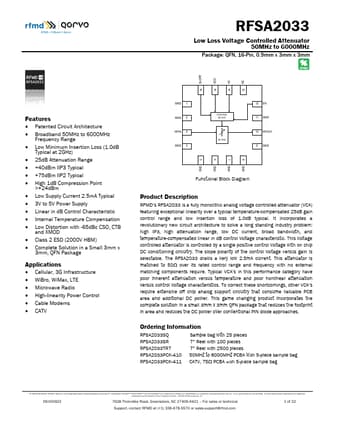

RFSA2033 Datasheet, Attenuator, RF Micro Devices

RFSA2033 Features

• Attenuator
• Patented Circuit Architecture
• Broadband 50MHz to 6000MHz Frequency Range
• Low Minimum Insertion Loss (1.0dB Typical at 2GHz)
• 25dB Attenuation Rang

PDF File Details

Part number:

RFSA2033

Manufacturer:

RF Micro Devices

File Size:

4.04MB

Download:

📄 Datasheet

Description:

Low loss voltage controlled attenuator. RFMD’s RFSA2033 is a fully monolithic analog voltage controlled attenuator (VCA) featuring exceptional linearity over a typical tempe

RFSA2033 Application

• Applications
• Cellular, 3G Infrastructure
• WiBro, WiMax, LTE
• Microwave Radio
• High-linearity Power Control
