RFSA2013 Datasheet, Attenuator, RF Micro Devices

RFSA2013 Features

  • Attenuator
  • Patented Circuit Architecture
  • Broadband 50MHz to 6000MHz Frequency Range
  • 30dB Attenuation Range
  • +50dBm IIP3 Typical
  • +80dBm IIP2 Typical

PDF File Details

Part number:

RFSA2013

Manufacturer:

RF Micro Devices

File Size:

943.57kb

Download:

📄 Datasheet

Description:

Voltage controlled attenuator. RFMD's RFSA2013 is a fully monolithic analog voltage controlled attenuator (VCA) featuring exceptional linearity over a typical tempe

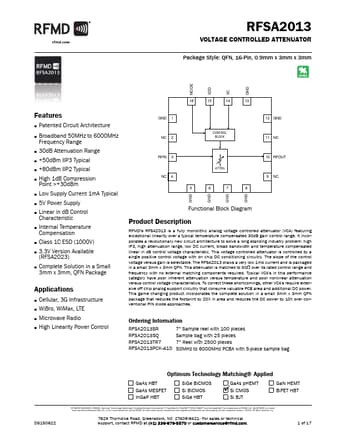

Datasheet Preview: RFSA2013 📥 Download PDF (943.57kb)
Page 2 of RFSA2013 Page 3 of RFSA2013

RFSA2013 Application

  • Applications
  • Cellular, 3G Infrastructure
  • WiBro, WiMax, LTE
  • Microwave Radio
  • High Linearity Power Control GND
