TQP3M9009 Datasheet, Block, Qorvo

TQP3M9009 Features

• Block
• 50 
    – 4000 MHz
• 21.8 dB Gain At 1.9 GHz
• +39.5 dBm Output IP3
• 1.3 dB Noise Figure At 1.9 GHz
• 50 Ohm Cascade-able Gain Bloc

PDF File Details

Part number:

TQP3M9009

Manufacturer:

Qorvo

File Size:

1.07MB

Download:

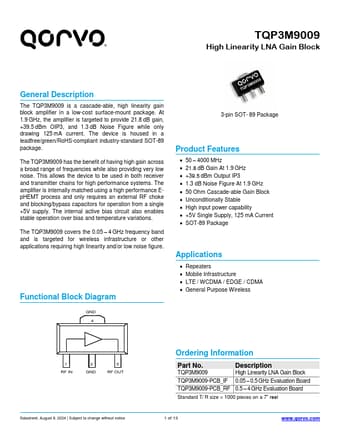

📄 Datasheet

Description:

High linearity lna gain block. The TQP3M9009 is a cascade-able, high linearity gain block amplifier in a low-cost surface-mount package. At 1.9 GHz, the amplifier i

TQP3M9009 Application

• Applications requiring high linearity and/or low noise figure. Functional Block Diagram GND 4 3-pin SOT- 89 Package Product Features
• 50 <
