TQP3M9040 Datasheet - TriQuint Semiconductor

1500 - 2300 MHz Dual LNA

TQP3M9040 Features

* 0.18 dB NFmin (Single Channel) at 1950 MHz

* 1500

* 2300 MHz operational bandwidth

* Gain = 18 dB at 1950 MHz

* +21.8 dBm Input IP3

* Integrated shut-down biasing feature

* Bias adjustable

* Does not require negative voltage supply

TQP3M9040 General Description

The TQP3M9040 is a high linearity, ultra low noise figure dual device amplifier in a 4x4 mm package. At 1950 MHz in a balanced configuration, this LNA provides 17.7dB gain, 21.8 dBm IIP3 and 0.62 dB noise figure. The part does not require a negative supply for operation and is bias adjustable for bo.

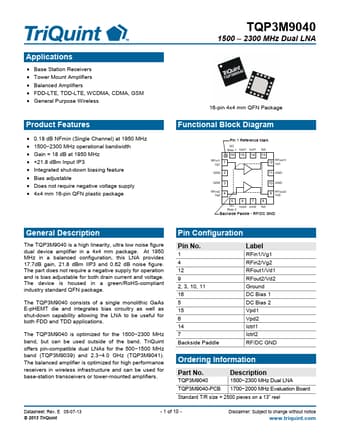

TQP3M9040 Datasheet (559.42 KB)

TQP3M9040 Datasheet Preview — Preview of TQP3M9040 PDF

Datasheet Details

Part number:

TQP3M9040

Manufacturer:

TriQuint Semiconductor

File Size:

559.42 KB

Description:

1500 - 2300 mhz dual lna.
Applications Base Station Receivers Tower Mount Amplifiers Balanced Amplifiers FDD-LTE, TDD-LTE, WCDMA, CDMA, .
