TQP3M9006 Datasheet - TriQuint Semiconductor

High Linearity LNA Gain Block

TQP3M9006 Features

* 500-4000 MHz 13.5 dB Gain @ 1.9 GHz 1.0 dB Noise Figure @ 1.9 GHz +38.5 dBm Output IP3 +22.4 dBm P1dB 50 Ohm Cascadable Gain Block Unconditionally Stable High Input Power Capability +5V Single Supply, 90 mA Current 3x3 mm QFN Package Funct

TQP3M9006 General Description

The TQP3M9006 is a high linearity low noise gain block amplifier in a low-cost surface-mount package. At 1.9 GHz, the amplifier typically provides 13.5 dB gain, +38.5 dBm OIP3, and 1.2 dB Noise Figure while only drawing 90 mA current. The device is housed in a leadfree/green/RoHS-compliant industry-.

TQP3M9006 Datasheet (0.97 MB)

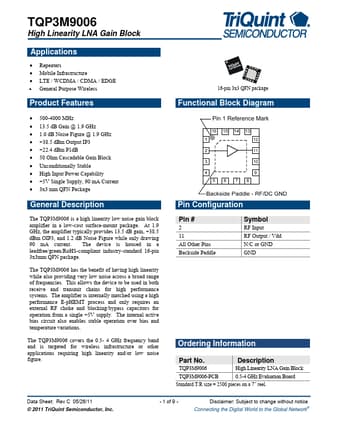

TQP3M9006 Datasheet Preview — Preview of TQP3M9006 PDF

Datasheet Details

Part number:

TQP3M9006

Manufacturer:

TriQuint Semiconductor

File Size:

0.97 MB

Description:

High linearity lna gain block.
TQP3M9006 High Linearity LNA Gain Block Applications Repeaters Mobile Infrastructure LTE / WCDMA / CDMA / EDGE General Purpos.
