TQP369184 Gain Block

The TQP369184 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 1900 MHz, the amplifier typically provides 20.3 dB gain, +28.5 dBm OIP3, and 3.9 dB Noise Figure while drawing 45 mA current. The device combines dependable performance with con.

TQP369184 Features

* DC

* 6000 MHz

* Flat, broadband frequency response

* 20.3 dB Gain at 1900 MHz

* 3.9 dB Noise Figure at 1900 MHz

* +28.5 dBm Output IP3 at 1900 MHz

* +15.5 dBm P1dB at 1900 MHz

* 50 Ohm Cascadable Gain Block

* Single Supply, 45

TQP369184 Datasheet (775.05 KB)

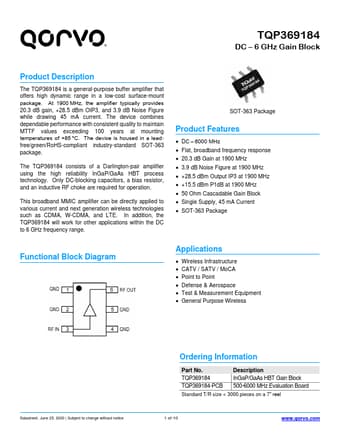

TQP369184 Datasheet Preview — Preview of TQP369184 PDF

Datasheet Details

Part number:

TQP369184

Manufacturer:

Qorvo

File Size:

775.05 KB

Description:

Gain block.
