TQP369182 Datasheet - TriQuint Semiconductor

DC-6 GHz Gain Block

TQP369182 Features

* DC-6000 MHz Flat, broadband frequency response 20.7 dB Gain at 1.9 GHz 3.9 dB Noise Figure at 1.9 GHz +28 dBm Output IP3 at 1.9 GHz +15.1 dBm P1dB at 1.9 GHz 50 Ohm Cascadable Gain Block Single Supply, 45 mA Current SOT-89 Package Functional Blo

TQP369182 General Description

The TQP369182 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surfacemount package. At 1.9 GHz, the amplifier typically provides 20.7 dB gain, +28 dBm OIP3, and 3.9 dB Noise Figure while drawing 45 mA current. The device combines dependable performance with consist.

TQP369182 Datasheet (868.52 KB)

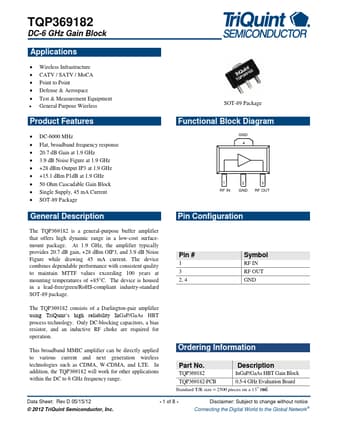

TQP369182 Datasheet Preview — Preview of TQP369182 PDF

Datasheet Details

Part number:

TQP369182

Manufacturer:

TriQuint Semiconductor

File Size:

868.52 KB

Description:

Dc-6 ghz gain block.
TQP369182 DC-6 GHz Gain Block Applications Wireless Infrastructure CATV / SATV / MoCA Point to Point Defense & Ae.
