TQP3M6005 Datasheet, amplifier equivalent, TriQuint Semiconductor

TQP3M6005 Features

  • Amplifier
  • 0.36 dB Noise Figure (single channel) 1700-2000 MHz 17.9 dB Gain (single channel) +13.4 dBm IIP3 (single channel) Compact 4 x

PDF File Details

Part number:

TQP3M6005

Manufacturer:

TriQuint Semiconductor

File Size:

568.42kb

Download:

📄 Datasheet

Description:

1700 - 2000 mhz high ip3 dual phemt low noise amplifier. The TQP3M6005 is a low noise dual pHEMT discrete device operating from 1700 - 2000 MHz. Noise figure is typically 0.36 dB per channel

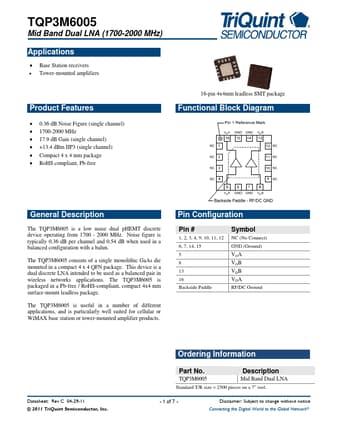

Datasheet Preview: TQP3M6005 📥 Download PDF (568.42kb)
Page 2 of TQP3M6005 Page 3 of TQP3M6005

TQP3M6005 Application

  • Applications
  • Base Station receivers Tower-mounted amplifiers 16-pin 4x4mm leadless SMT package Product Features

TAGS

TQP3M6005
1700
2000
MHz
High
IP3
Dual
PHEMT
Low
Noise
Amplifier
TriQuint Semiconductor
