TQP369182 Gain Block

The TQP369182 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 1.9 GHz, the amplifier typically provides 20.7 dB gain, +28 dBm OIP3, and 3.9 dB Noise Figure while drawing 45 mA current. The device combines dependable performance with consis.

TQP369182 Features

* DC-6000 MHz

* Flat, broadband frequency response

* 20.7 dB Gain at 1.9 GHz

* 3.9 dB Noise Figure at 1.9 GHz

* +28 dBm Output IP3 at 1.9 GHz

* +15.1 dBm P1dB at 1.9 GHz

* 50 Ohm Cascadable Gain Block

* Single Supply, 45 mA Current

TQP369182 Datasheet (781.88 KB)

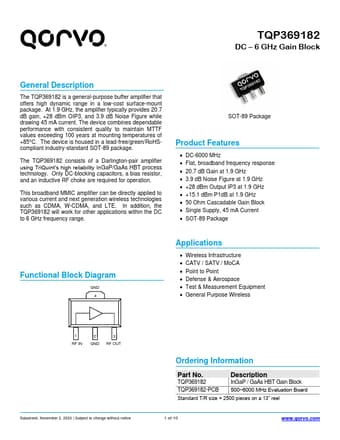

TQP369182 Datasheet Preview — Preview of TQP369182 PDF

Datasheet Details

Part number:

TQP369182

Manufacturer:

Qorvo

File Size:

781.88 KB

Description:

Gain block.
