TQP3M9005 Datasheet, Block, TriQuint Semiconductor

TQP3M9005 Features

  • Block
  • 50-4000 MHz 15.3 dB Gain @ 1.9 GHz 0.8 dB Noise Figure @ 1.9 GHz <1.5:1 I/O VSWR ( >1

PDF File Details

Part number:

TQP3M9005

Manufacturer:

TriQuint Semiconductor

File Size:

1.27MB

Download:

📄 Datasheet

Description:

Lna gain block. The TQP3M9005 is a high linearity low noise gain block amplifier in a low-cost surface-mount package. At 1.9 GHz, the amplifier typic

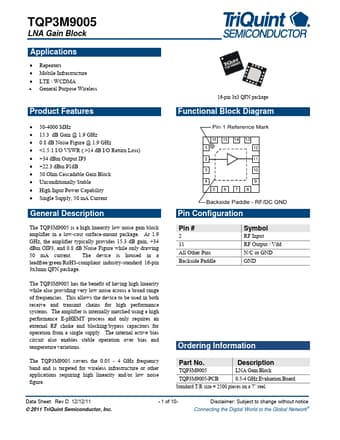

Datasheet Preview: TQP3M9005 📥 Download PDF (1.27MB)
Page 2 of TQP3M9005 Page 3 of TQP3M9005

TQP3M9005 Application

  • Applications
  • Repeaters Mobile Infrastructure LTE / WCDMA General Purpose Wireless 16-pin 3x3 QFN package P
