TQP369181

DC-6 GHz Gain Block

TriQuint Semiconductor

TQP369181 Features

* DC-6000 MHz 15.3 dB Gain @ 1.9 GHz 3.6 dB Noise Figure @ 1.9 GHz +28.7 dBm Output IP3 +14.4 dBm P1dB 50 Ohm Cascadable Gain Block +5V Single Supply, 45 mA Current SOT-363 Package Functional Block Diagram General Description The TQP369181 is a general

TQP369181 General Description

The TQP369181 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surfacemount package. At 1.9 GHz, the amplifier typically provides 15.3 dB gain, +28.7 dBm OIP3, and 3.6 dB Noise Figure while drawing 45 mA current. The device combines dependable performance with consi.

TQP369181 Datasheet (896.69 KB)

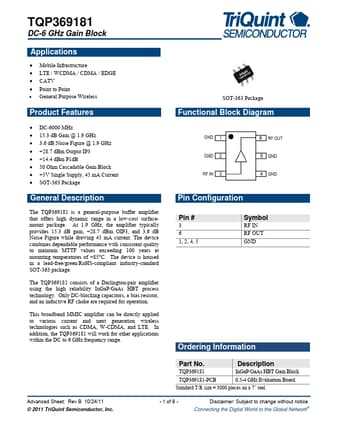

TQP369181 Datasheet Preview — Preview of TQP369181 PDF

Datasheet Details

Part number:

TQP369181

Manufacturer:

TriQuint Semiconductor

File Size:

896.69 KB

Description:

Dc-6 ghz gain block.
www.DataSheet.co.kr TQP369181 DC-6 GHz Gain Block Applications
*
*
*
*
* Mobile Infrastructure LTE / WCDMA / CDMA / EDGE CATV Po.
