TQP3M9018 - High Linearity LNA Gain Block

Product Overview

Qorvo

Datasheet Details

Part number	TQP3M9018
Manufacturer	Qorvo
File Size	719.30 KB
Description	High Linearity LNA Gain Block
Datasheet	TQP3M9018 Datasheet
Additional preview pages of the TQP3M9018 datasheet.

Product details

Description

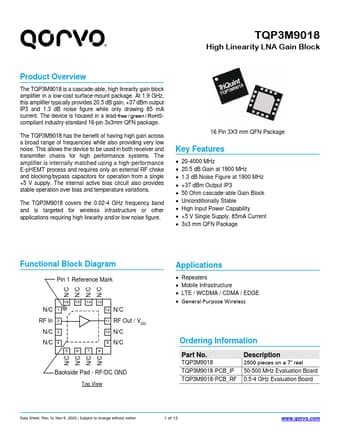

2500 pieces on a 7” reel 50-500 MHz Evaluation Board 0.5-4 GHz Evaluation Board Data Sheet, Rev.N, Nov 6, 2020 | Subject to change without notice 1 of 12 www.qorvo.com TQP3M9018 ® High Linearity LNA Gain Block Absolute Maximum Ratings Parameter Rating Storage Temperature 65 to 150°C RF Input Power, CW, 50Ω, T=25°C +23 dBm Supply Voltage (VDD) +7 V Reverse Supply Voltage -0.3 V Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause perma

Features

20-4000 MHz.
20.5 dB Gain at 1900 MHz.
1.3 dB Noise Figure at 1900 MHz.
+37 dBm Output IP3.
50 Ohm cascade-able Gain Block.
Unconditionally Stable.
High Input Power Capability.
+5 V Single Supply, 85mA Current.
3x3 mm QFN Package Functional Block Diagram Pin 1 Reference Mark N/C N/C N/C N/C 16 15 14 13 N/C 1 12 N/C RF In 2 N/C 3 11 RF Out / VDD 10 N/C N/C 4 9 N/C 5678 N/C N/C N/C N/C Backside Pad.
