TQP3M9041

2300 - 6000 MHz Dual LNA

TriQuint Semiconductor

TQP3M9041 Features

* 0.33 dB NFmin (Single Channel) at 2600 MHz

* 2300

* 6000 MHz operational bandwidth

* Gain = 18.4 dB at 2600 MHz

* +20.2 dBm Input IP3

* Integrated shut-down biasing feature

* Bias adjustable

* Does not require negative voltage supply

TQP3M9041 General Description

The TQP3M9041 is a high linearity, ultra low noise figure dual device amplifier in a 4x4 mm package. At 2600 MHz in a balanced configuration, this LNA provides 18.4dB gain, 20.2 dBm IIP3 and 0.8 dB noise figure. The part does not require a negative supply for operation and is bias adjustable for bot.

TQP3M9041 Datasheet (595.49 KB)

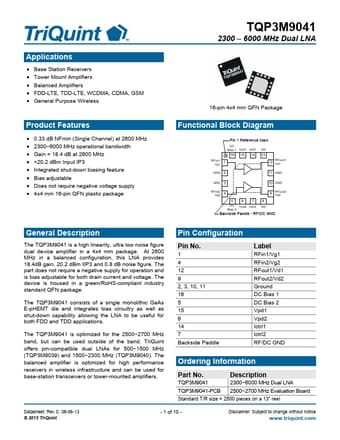

TQP3M9041 Datasheet Preview — Preview of TQP3M9041 PDF

Datasheet Details

Part number:

TQP3M9041

Manufacturer:

TriQuint Semiconductor

File Size:

595.49 KB

Description:

2300 - 6000 mhz dual lna.
Applications

* Base Station Receivers

* Tower Mount Amplifiers

* Balanced Amplifiers

* FDD-LTE, TDD-LTE, WCDMA, CDMA, .
