RF3160 Datasheet, Module, RF Micro Devices

RF3160 Features

  • Module
  • Single 2.8V to 5.0V Supply Voltage
  • +35.0dBm GSM Output Power at 3.2V
  • +32.5dBm DCS Output Power at 3.2V 13 GND 12 DCS OUT 11 GND 10 GSM OUT 9 GND 16 GND 1

PDF File Details

Part number:

RF3160

Manufacturer:

RF Micro Devices

File Size:

101.48kb

Download:

📄 Datasheet

Description:

Dual-band gsm/dcs power amp module. The RF3160 is a high-power, high-efficiency power amplifier module. The device is self-contained with 50 Ω input and output terminals

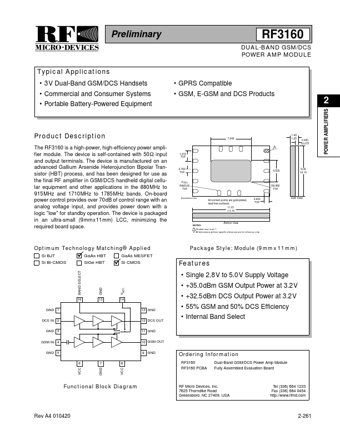

Datasheet Preview: RF3160 📥 Download PDF (101.48kb)
Page 2 of RF3160 Page 3 of RF3160

RF3160 Application

  • Applications
  • 3V Dual-Band GSM/DCS Handsets
  • Commercial and Consumer Systems
  • Portable Battery-Powered Equipment
