RF3166D - DUAL-BAND GSM900/DCS POWER AMP MODULE

RF Micro Devices

RF3166D Datasheet Preview — Preview of RF3166D PDF

Datasheet Details

Part number	RF3166D
Manufacturer	RF Micro Devices
File Size	256.25 KB
Description	DUAL-BAND GSM900/DCS POWER AMP MODULE
Datasheet	RF3166D_RFMicroDevices.pdf

RF3166D Product details

Description

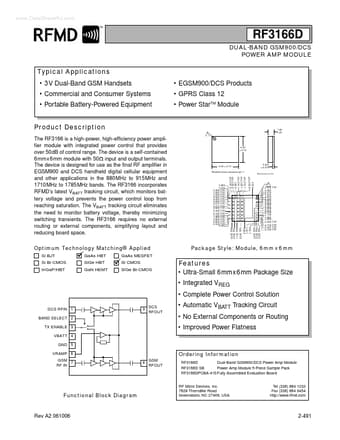

1 DUAL-BAND GSM900/DCS POWER AMP MODULE EGSM900/DCS Products GPRS Class 12 Power StarTM Module 1.40 1.25 0.000 TYP 0.565 TYP 1.150 TYP 2.000 TYP 2.850 5.057 5.100 Optimum Technology Matching® Applied Si BJT Si Bi-CMOS InGaP/HBT 9 Package Style: Module, 6mm x6mm GaAs HBT SiGe HBT GaN HEMT 9Si CMOS GaAs MESFET SiGe Bi-CMOS

Features

Ultra-Small 6mmx6mm Package Size.
Integrated VREG.
Complete Power Control Solution.
Automatic VBATT Tracking Circuit.
No External Components or Routing.
Improved Power Flatness DCS RFIN 1 BAND SELECT 2 TX ENABLE 3 VBATT 4 GND 5 VRAMP 6 GSM 7 RF IN 9 DCS RFOUT Ordering Information 8 GSM RFOUT RF3166D Dual-Band GSM900/DCS Power Amp Module RF3166D SB Power Amp Module 5-Piece Sample Pack RF3166DPCBA-410 Fully Assembled Evaluation Board RF Mi.
