RF3165 3V 1700MHz LINEAR POWER AMPLIFIER MODULE

3.00 -A-B- The RF3165 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems. The device is manufactured on an advanced third generation GaAs HBT process, and was designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X handheld digital ce.

RF3165 Features

* Input Internally Matched@50 Ω

* Output Internally Matched

* 28dBm Linear Output Power

* 40% Peak Linear Efficiency

* 28dB Linear Gain

* -50dBc ACPR @ 1.25MHz VCC1 16 15 14 13 RF IN 1 GND 2 VMODE 3 Bias VREG 4 NC IM IM 12 VCC2 11 VCC2 10 VCC

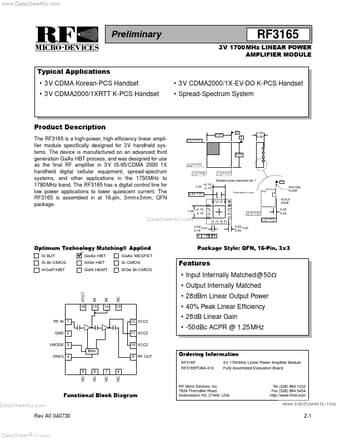

RF3165 Datasheet (297.89 KB)

RF3165 Datasheet Preview — Preview of RF3165 PDF

Datasheet Details

Part number:

RF3165

Manufacturer:

RF Micro Devices

File Size:

297.89 KB

Description:

3v 1700mhz linear power amplifier module.
