RF3183

QUAD-BAND/GSM850/EGSM900/DCS/PCS/POWER AMPLIFIER MODULE

RF Micro Devices

RF3183 Features

* Typical GMSK Efficiency GSM850/900 48/53% DCS/PCS 50/53%

* Auto VBATT Tracking Circuit avoids Switching Transients at Low Supply Voltage

* Integrated Power Flattening Circuit Reduces Power and Current into Mismatch

* Integrated VRAMP Rejection Filter Eliminates External Components

RF3183 General Description

The RF3183 is a high power amplifier module with integrated power control. The input and output terminals are internally matched to 50. The amplifier devices are manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (GaAs HBT) process. The module is designed to be the final.

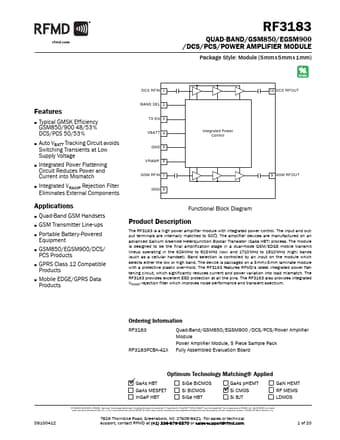

RF3183 Datasheet (594.53 KB)

RF3183 Datasheet Preview — Preview of RF3183 PDF

Datasheet Details

Part number:

RF3183

Manufacturer:

RF Micro Devices

File Size:

594.53 KB

Description:

Quad-band/gsm850/egsm900/dcs/pcs/power amplifier module.
