RF5601 Low Noise Amplifier

Pin Name Description 1 RF IN RF Input. Input is matched to 50Ω and DC block is provided internally. 2 LNA_EN LNA Enable. Please see truth table for operation. 3 BYP_EN Bypass Enable. Please see truth table for operation. 4 NC No Connect. 5 RF OUT RF Output. Output is matched to 50Ω a.

RF5601 Features

* Single Supply Voltage 2.3V to 4.8V

* 1.8 dB Noise Figure

* 12 dB Typical Gain

* 5dB IL in Bypass Mode Applications

* 802.11a/n/ac WiFi Applications

* Consumer Electronics

* Mobile Devices

* Gaming

* General Purpose 5GHz LNA LNA_EN 2 3 5 RF OUT 4 N/C BYP_EN

RF5601-RFMicroDevices.pdf

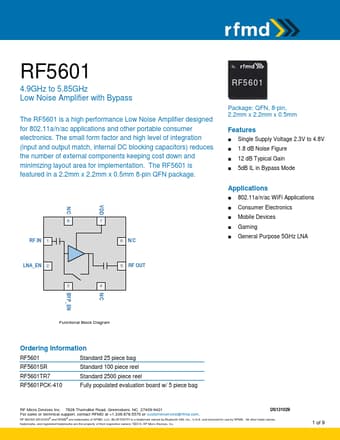

RF5601 Datasheet Preview — Preview of RF5601 PDF

Datasheet Details

Part number:

RF5601

Manufacturer:

RF Micro Devices

File Size:

343.60 KB

Description:

Low noise amplifier.
