RF5616

5GHz LINEAR POWER AMPLIFIER

RF Micro Devices

RF5616 Features

* Single Supply Voltage 3.0V to 5.0 V

* Two Mode Operation

* 29dB Typical Gain Across Band

* POUT:18dBmat 3.3V Typ. POUT: 21dBm at 5V Typ.

* Integrated Second and Third Harmonic Filter Applications

* IEEE802.11a/n and IEEE802.16e Applications

* HyperLAN

* WiFi Systems

RF5616 General Description

The RF5616 is a linear, medium-power, high-efficiency power amplifier IC designed specifically for battery-powered WiFi applications such as PC cards, mini PCI, and compact flash applications. It is also designed to meet IEEE802.11a, IEEE802.11n, IEEE802.16e (4.9GHz to 5.850GHz only) WiMax, FCC, and.

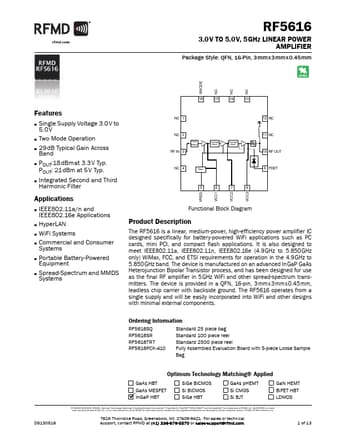

RF5616 Datasheet (650.40 KB)

RF5616 Datasheet Preview — Preview of RF5616 PDF

Datasheet Details

Part number:

RF5616

Manufacturer:

RF Micro Devices

File Size:

650.40 KB

Description:

5ghz linear power amplifier.
