RF56-12S Datasheet - JENNINGS

RF56-12S SPST Vacuum Relays

SPECIFICATIONS RF56 RF50 Model Number RF57 RF51 Test Voltage (kV Peak) 60 Hz 12 12 Rated Operating Voltage (kV Peak) DC or 60 Hz 10 10 2.5 MHz 77 16 MHz 66 32 MHz 44 Continous Current, Carry (Amps, RMS) DC or 60 Hz 12 12 2.5 MHz 10 10 16 MHz 66 32 MHz 55 Contact Capacitance (pF) Between Open Contacts 1.5 1.5 Open Contacts to Ground 1.5 1.5 Contact Resistance (mΩ) 20 20 Operate Time (ms. Max.) 10 15 Release Time (ms. Max.) 10 15 Pull-in Vol.

RF56-12S-JENNINGS.pdf

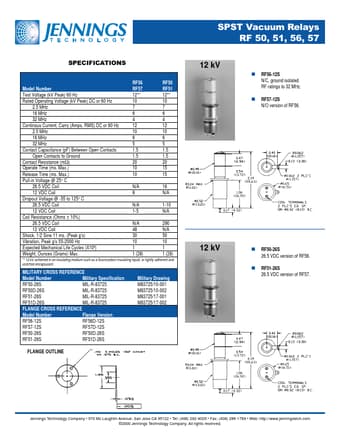

Preview of RF56-12S PDF

Datasheet Details

Part number:

RF56-12S

Manufacturer:

JENNINGS

File Size:

149.11 KB

Description:

Spst vacuum relays.
